4 channel Optical Fiber Camera System unit for ENG,SNG and EFP and Datevideo Remote MCU-100 REVERSE video

Name: 4 channel Optical Fiber Camera System unit for ENGSNG and EFP and Datevideo Remote MCU100 REVERSE video
Brand: Beyondopto
Price: 1 USD

Model Number : BY-EFP -4

Place of Origin : Guangdong, China

Brand Name : Beyondopto

Packaging Details : carton box

Supply Ability : 100 Pair/Pairs per Month

Price : Conact us

MOQ : 1 pair

Payment Terms : T/T

Delivery Time : 20working days

Type : Other

Product name : Fiber System

Fiber Type : Single Fiber Single Mode

Contact Now

Product Description

BeyondOpto Optical Fiber Camera System

Our Optical Fiber Camera System provides a robust fiber optic link between your camcorder and OB Van.
This system is able to in Control of four camcorders with the Datavideo MCU-100 at the same time.
The camera adapter Rj 45 Interface tranport the Remote data RS422 /RS232/RS485 connect the AD-1 adapters.
This system will allow you to adjust your cameras all by yourself at a more remote place , the distance between you and the camcorder up to 10km.

Feature

1. Handle all Pathological patterns
2. Automatic cable equalization to ensure signal integrity
3. 3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M
4. 10+Km on single mode fiber or 300m on multimode fiber transmission
5. With amplifier for mic and phones
6. Remote control with Datavideo MCU-100
7. Tally/GPI LED+/- output or dry Contact Closure optional
8. V-mount or A-mount battery plate optional

Specification

item	value
Model Number	BY-EFP -4

Intercom

Camera Optic Adaptor
Interface
4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack
Microphone
Mic inputs with mute and pre-amps
Headphone
With amplifier and volume up or down
Optic Base Station
Interface
3pin XLR Female/Male: Party line audio for Clearcom or RTS Intercom main station
DB9(Male): Line level audio input and output,

SDI input/output:
Signal format
SMPTE 424M, SMPTE 292M, SMPTE 259M
Data rate
270Mbit/s - 1.48Gbit/s - 3Gbit/s
Cable Equalization
Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
SDI interface
BNC 75 Ohm

Packing & Delivery

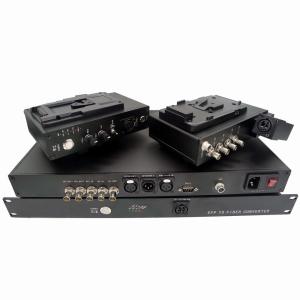

Cheap 4 channel Optical Fiber Camera System unit for ENG,SNG and EFP and Datevideo Remote MCU-100 REVERSE video for sale

4 channel Optical Fiber Camera System unit for ENG,SNG and EFP and Datevideo Remote MCU-100 REVERSE video Images
